Description

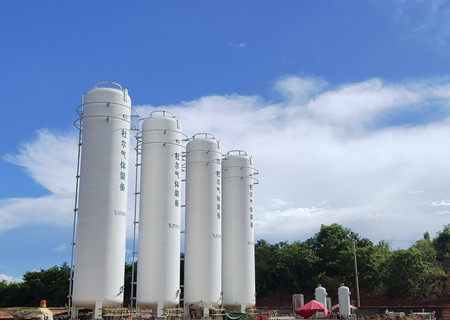

LNG Vacuum Cryogenic Liquid Storage Tank
Vacuum LNG cryogenic liquid storage tank is a kind of commonly used and advanced cryogenic liquid long-term storage equipment, which has the advantages of large storage capacity, adjustable pressure, low evaporation rate, safety and reliability. It is widely used in LNG filling station, LNG gasification station, LNG emergency peak shaving station and other projects. The storage tank adopts double-layer cylindrical structure, with interlayer filled with insulation material pearlite and vacuumized. It is mainly composed of inner tank and outer tank, insulation structure, pipeline system and safety accessories.
Introduce
configuration parameter
Volume: 5-250m 3 Pressure: 0.2-3mpa
Insulation method: vacuum powder insulation
Basic type: vertical or horizontal
Storage medium
● liquefied natural gas (LNG).
Process flow system
1. Liquid inlet system
2. Liquid level pressure measurement system
3. Full test system
4. Safe discharge system
5. Drainage system
6. Venting system
7. Evacuation system
