Description

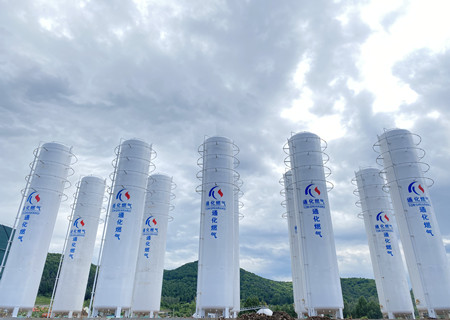

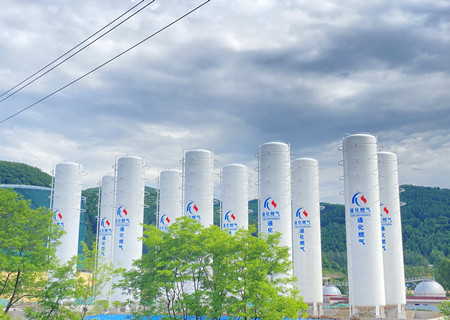

Vacuum Cryogenic Liquid Storage Tank
Vacuum cryogenic liquid storage tank is a kind of commonly used and advanced long-term storage equipment for cryogenic liquid, which has the advantages of large storage capacity, adjustable pressure, low evaporation rate, safety and reliability. It is widely used in the storage of industrial gases such as liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, ethylene and liquefied natural gas (LNG), It is mainly composed of inner tank, outer tank, insulation structure, pipeline system and safety accessories.
Introduce
Technical Parameters
Volume: 5-250m 3 Pressure: 0.2-3mpa
Insulation method: vacuum powder insulation
Basic type: vertical or horizontal
For storage of:
●Liquid nitrogen, liquid oxygen, liquid argon, liquid ethane, ethylene, etc;
● liquefied natural gas (LNG).
Process flow system
1. Liquid inlet system
2. Liquid level pressure measurement system
3. Full test system
4. Safe discharge system
5. Drainage system
6. Venting system
7. Evacuation system
8. Supercharging system
flow chart
